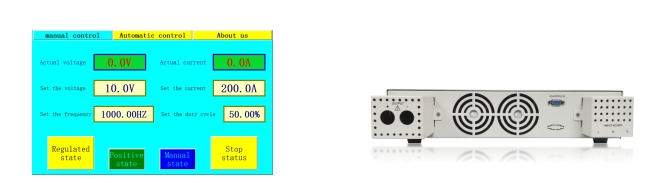

LCD display with adjustable peak voltage, average current, frequency, and duty cycle
Rated peak voltage 0-1000V, rated average current 0-100A
Voltage display in all 5 digits, current display in all 4 digits
Output frequency covers 1HZ-200KHZ, with a duty cycle of 10% -90%
Low ripple and low noise
Maximum resolution of 1mV and 1mA, more precise power output
High display accuracy and high programming accuracy

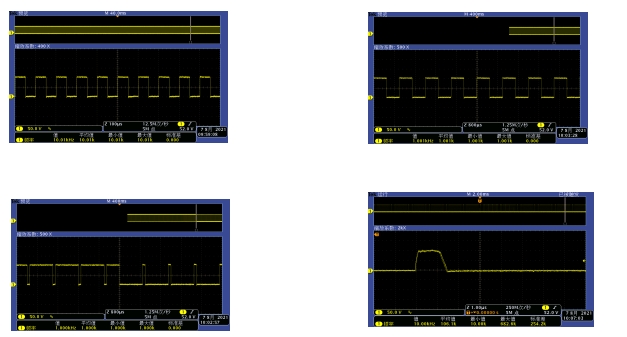

Rising edge less than 200ns
The rising edge has no overshoot and the rising slope of voltage and current can be set
Real time power display
Adjustable upward slope
Standard interface: RS232&RS485
|
technical parameter |
SMC pulse power series |
|
Communication: power supply |
|
|
- voltage |
Single phase 220VAC±10% (≤3KW); three phase 380VAC±10% (>3KW) |
|
- frequency |
50-60HZ |
|
- power factor |
＞0.92 |
|
output voltage |
|
|
- scope |
0-1000Vpp |
|
- definition |
[0.5% of rated value |
|
- 0-100% load adjustment rate |
[0.05% of rated value |
|
- ±10%△UAC linear adjustment rate |
[0.05% of the rated value |
|
output |
|
|
- scope |
0-100Arms |
|
- definition |
[1% of the rated value |
|
- 1-100% load adjustment rate |
[0.15% of the rated value |
|
- ±10% △ Uac linear adjustment rate |
[0.05% of the rated value |
|
|
|
|
output power |
|
|
- scope |
0-10KW |
|
- definition |
[0.5% of the rated value |
|
|
|
|
output frequency |
|
|
- scope |
10HZ-200KW |
|
- definition |
[0.2% of rated value |
|
|
|
|
duty cycle |
|
|
- scope |
10%-90% |
|
- definition |
[Rated value 0.5% (within 20KHZ) |
|
defencive function |
Output voltage limit protection, output current limit protection, output power limit protection, temperature protection |
|
|
|
|
Isolate voltage |
|
|
-The AC input is connected to the housing |
1500VDC |
|
-AC input to DC output |
1500VDC |
|
-DC output to the housing (PE) |
500VDC |
|
|
|
|
digital interface |
RS232 or RS485 |
|
cooling-down method |
forced air cooling |
|
working temperature |
-5℃-45℃ |
|
Storage temperature |
-20℃-60℃ |
|
relative humidity |
<80%, no condensation |
|
Size (width * height * depth)
|
210*88*350mm（＜1KW）；425*88*420mm（＜3KW）； 425*132*552mm（＜10KW） |
|
weight |
6KG（＜1KW）；12KG（＜3KW）；24KG（＜10KW）
|
