product model |
SNF-50- 12 |
SNF-50- 12 |
SNF-50-24 |
|
output |
12V0~4.2A |
15V0~3.4A |
24V0~2.1A |
|
D-value |
± 5% |
± 5% |
± 5% |
|
scope |
100mV |
150mV |
150mV |
|
productiveness |
78% |
78% |
80% |
|
Input voltage range |
170~264VAC 47~63Hz240~370VDC |
||
|
input currenton |
0 .65A/230V |
||
|
dash current |
Cold start current 36A/230V |
||
|
Leakage current |
<0 .5 mA/240VAC |
||
|
overload protection |
115~135% hiccup mode, automatic recovery |
||
|
overvoltage crowbar |
115%/135% protection mode: turn off the output voltage and restart the output |
||
|
Overtemperature protection |
Cut off output when> 85℃ and automatically recover |
||
|
Water resistance |
IP67 |
||
|
Start, rise, hold time |
200ms 100ms 30ms |
||
|
Pressure resistance |
I/ P-O/ P : 1 .5KvAC1 minute I/ P- FG: 1 .5KvAC1 minute O/ P- FG:0 .5KvAC 1 minute |
||
|
Working temperature and humidity |
- 10℃~+60℃,20%~90% RH |
||
|
Weight/packaging |
0 .6 kg ,30pcs/19kg |
||
|

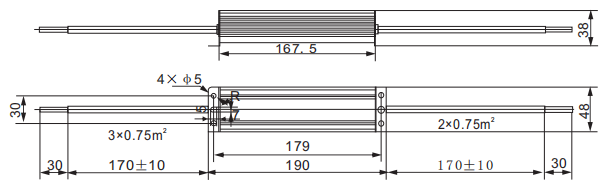

190× 48× 38mm |
|||
