product model

SNF-400-12

SNF-400-15

SNF-400-24

SNF-400-48

output

12V 0~ 33A

15V 0~ 26A

24V 0~16.5A

48V 0~8.5A

D-value

± 5%

± 5 %

± 5 %

± 5 %

scope

120mV

120mV

120mV

150mV

productiveness

81%

81%

84%

84%

input voltage range

170~264VAC   47~63Hz  240~370VDC

input currenton

1.6A/230V

dash current

Cold start current 40A/230V

Leakage current

< 3.5mA/240VAC

overload protection

115~135% hiccup mode, automatic recovery

Overvoltage protection

115%/135% protection mode: turn off the output voltage and restart the output

Overtemperature protection

Cut off output when 85℃ or more, and automatically recover

classification of waterproof

l

IP67

Start, rise, hold time

200ms  100ms  30ms

Pressure resistance

I/ P- O/ P : 1 .5KvAC 1 minute        O/ P- FG:0 .5KvAC 1 minute

Working temperature and humidity

- 10℃~ +60℃,20%~90% RH

Weight/packaging

1.5kg , 16pcs/25kg

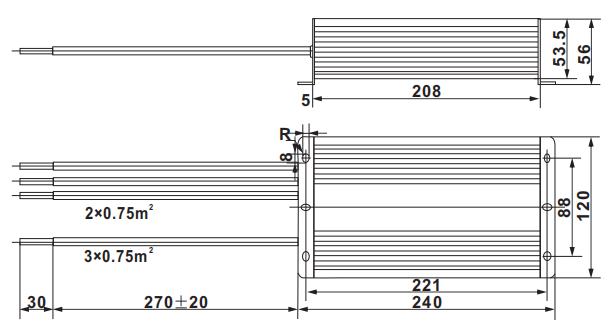

230×120×56mm
