The SDB series is a bidirectional programmable DC power supply that integrates DC power supply and feedback load. It can achieve the function of SOURCE to provide energy to the load, as well as the function of SINK to absorb load energy and feedback it to the grid, achieving dual quadrant operation.
The SDB series can reach a maximum voltage of 2250V, support multiple parallel machines, achieve power expansion, and is widely used in fields such as automotive electronics, power batteries, photovoltaics, energy storage testing, etc.
(11) Support multiple remote controls, standard RS232, optional RS485, CAN, LAN, etc
Typical recommendation

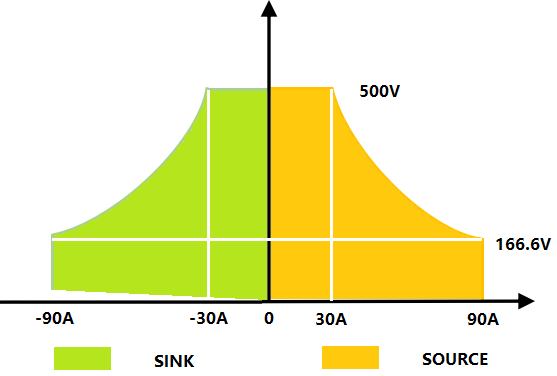

Dual directional flow of energy, fast switching
The SDB series integrates source and load design to achieve high-speed source load current mode conversion, allowing for quick switching between output current and absorption current, effectively avoiding voltage or current overshoot.

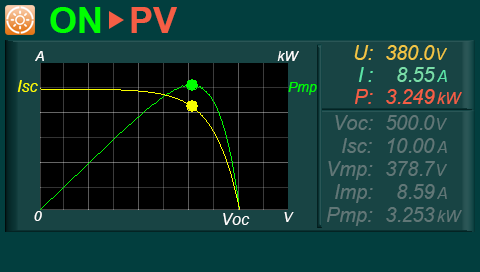

Oscilloscope mode displays real-time simulated curves of solar cell arrays
The SDB series power supply is equipped with standard SAS models such as EN50530 and Sandia, which can simulate the IV/PV curve of solar cell arrays. After the user sets the parameters, the curve can be generated internally and output for testing the static and dynamic maximum power tracking performance of the inverter. At the same time, this mode has oscilloscope function, which can display IV/PV curves on the interface and real-time display the current working coordinate point, simple and intuitive.
Implement multiple standard automotive power grid curves
Automotive electronic devices may encounter power transient interference during start-up and operation. To ensure that the equipment can withstand testing, it is necessary to simulate harsh working conditions during testing. According to industry standards, the SDB series can output various standard curves to achieve instantaneous voltage drops during vehicle start-up and various automotive electronic testing pulses for performance testing of electronic devices.
Specification and model
voltage
model
current
power
voltage
model
current
power
0-100V
SDB100-170
170A
5kW
0-300V
SDB300-75
75A
5kW
SDB100-340
340A
10kW
SDB300-150
150A
10kW
SDB100-510
510A
15kW
SDB300-225
225A
15kW
SDB100-510X
510A
20kW
SDB300-225X
225A
20kW
voltage
model
current
power
voltage
model
current
power
0-500V
SDB500-40
40A
5kW
0-750V
SDB750-25
25A
5kW
SDB500-80
80A
10kW
SDB750-50
50A
10kW
SDB500-120
120A
15kW
SDB750-75
75A
15kW
SDB500-160
160A
20kW
SDB750-80
80A
20kW
SDB500-240
240A
30kW
SDB750-120
120A
30kW
voltage
model
current
power
voltage
model
current
power
0-1000V
SDB1000-40
40A
10kW
0-1500V
SDB1500-40
40A
15kW
SDB1000-80
80A
20kW
SDB1500-80
80A
30kW
0-2250V
SDB2250-25
25A
15kW
SDB2250-40
40A
30kW
